SSA Snatch Strap Combo Harvester 75Tonne or 75000kgs 15Meters

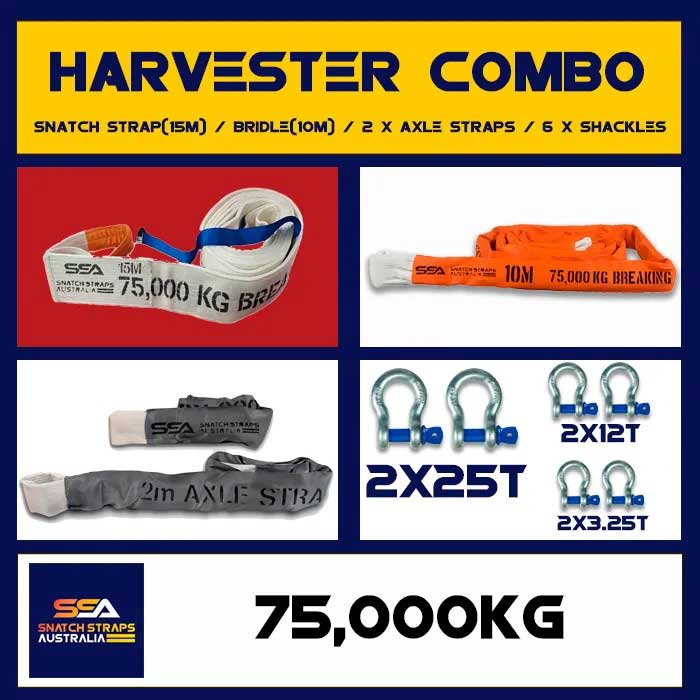

SSA Snatch Strap Combo Harvester 75Tonne or 75000kgs 15Meters includes:

1 x SSA Snatch Strap 75Tonne or 75000kgs 15 Meters
1 x SSA Bridle 75Tonne or 75000kgs 10 Meters
1 x SSA Axle Straps 75Tonne or 75000kgs (2 x 40Tonne or 40000kgs to Suit SSA Bridle 75Tonne or 75000kgs) 2 x 2 Meters
2 x 25Tonne Shackles (For Snatch Strap)
2 x 3.25Tonne Shackles (For Anti-Recoil Straps)
2 x 9.5Tonne Shackles (For Bridle/Axle Straps)

This 75,000kg breaking recovery pack is our most popular pack for farmers recovering harvesters. The custom extended 10m bridle is used to connect to axle straps on the FRONT axle and is long enough to loop all the way to the rear of the harvester.
This means you no longer have to crawl under your harvester where the snatch strap joins to the bridle.

The bridle is rated 75,000kg breaking as a U shape bridle, it can also be used as a straight pull 37,500kg breaking emergency tow strap.

Snatch Straps are the most cost effective method of recovering heavy machinery.

SSA Snatch Strap 75Tonne or 75000kgs will suit SP Harvester and SP Boomsprays, Tractor and trailed boomsprays, smaller 4WD and air-seeder combinations, single trailer truck units. Up to approximately 300-350HP pulling.

Snatch straps standard lengths are 9m/12m/15m/20m and 25 Meters.
We can customise any length, please contact us for a quote here reception@snatchstraps.com.au

Suggested shackle size for Snatch Strap = 2 x 25000kgs (25Tonne)
Suggested shackle size for anti-recoil strap = 2 x 4750kgs (4.75Tonne)
Suggested shackle size for Bridle/Axle Straps = 2 x 12000kgs (4.75Tonne)
Our range of shackles can be found HERE

PLEASE NOTE:  Snatch Straps can not be used for towing due to the 20%-30% stretch of the nylon. Attempting to tow will cause the strap to break at the stitching.
If you require a tow strap, please CLICK HERE to see tow strap range.

Snatch Strap

SSA (Snatch Straps Australia) Recovery Snatch Straps are made from Australian Made 100% Nylon webbing, not Polyester.
All webbing is sewn by our team that has over 40 years experience in this product.
Eyes are sewn at each end of the strap with the Item Specifications and unique batch number attached.

NEW MANDATORY SAFETY STANDARD – It is recommended that the minimum breaking strength of the strap should be between 2 and 3 times the vehicle’s gross vehicle mass (GVM) and the strap must be suited to the (GVM) of the lighter of the two vehicles used in the recovery process.
This means the 75,000kg breaking snatch strap can safely extract a vehicle fully loaded with a maximum 37,500kg GVM.
For full details on Snatch Strap Industry Guidelines are covered under the
Consumer Goods (Motor Vehicle Recovery Straps) Safety Standard 2017

Anti - Recoil Strap

All Snatch Strap Australia Snatch Straps include the anti-recoil safety strap.
The anti-recoil safety straps are a superb product.

In the event the breakage limit is reached, the anti-recoil strap eliminates the recoil of the of the snatch strap.

Anchor points on vehicles are not always adequate to withstand the tonnage placed on them.

Recovery Bridle:

A recovery bridle is a webbing strap attached to both sides of the vehicle being towed or winched. It allows the movement on the snatch strap to deflect from side to side allowing the towing vehicle and the vehicle being towed independence of movement.
The bridle can also be used as a straight pull 37,500kg breaking tow strap. This means you can tow up to a maximum 18,750kg GVM.
It is possible to purchase higher rated bridles so the tow strap matches your GVM, eg a 150,000kg bridle can be used as a 75,000kg breaking straight pull allowing up to 37,500kg vehicles to be towed.
The alternative is to buy an additional strap specifically made to be a tow strap.

Axle Strap:

An Axle Strap is a webbing strap attached to the axle as a loop and then connected to the Bridle. 2 Axle straps will be required connecting to both ends of the bridle.
This allows easier access and centralising of the bridle for easier extraction of vehicle.

CAUTION: If the webbing strap is cut or damaged DO NOT USE, take it to your local stockist for assessment repair.
All instructions are required to be perfectly followed, anti-recoil straps to be secured whenever supplied and common sense does need to be employed at all times.
