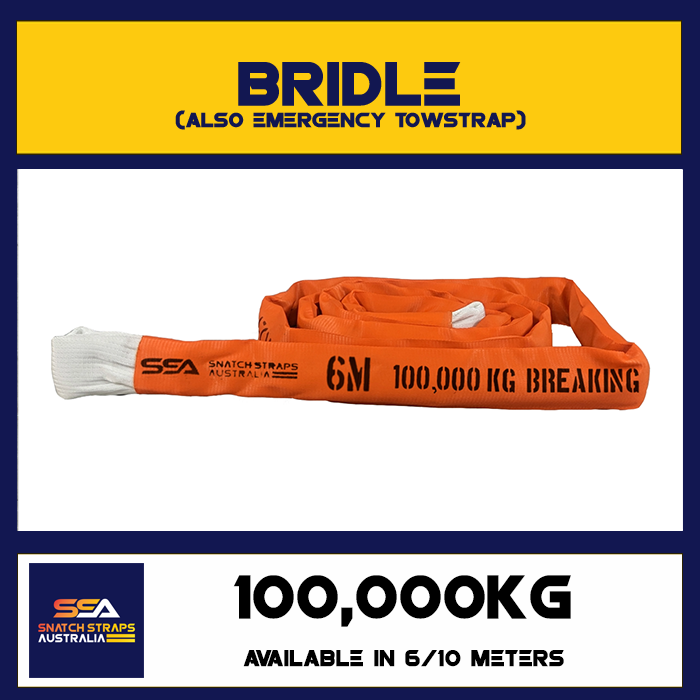

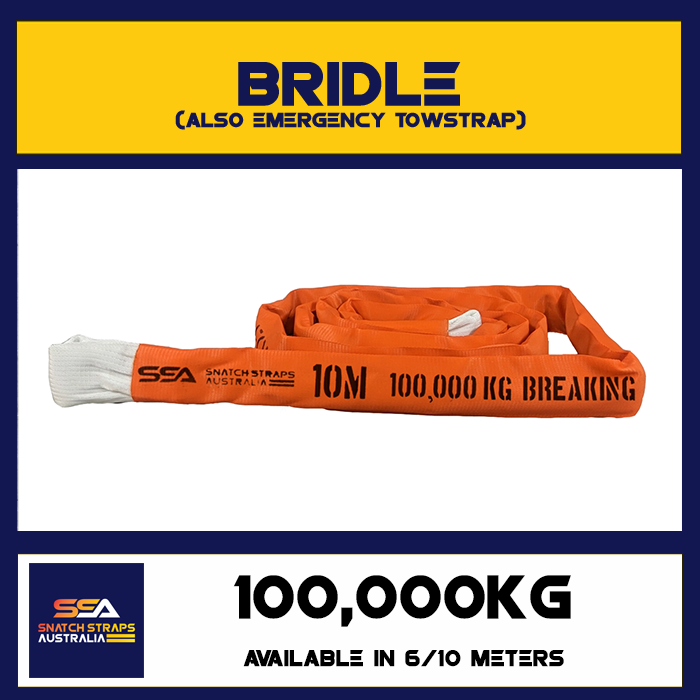

BRIDLE - 100Tonne or 100000kgs Recovery Bridle or Equaliser Strap
Product Overview
Engineered for extreme recovery operations, this 100Tonne or 100000kgs Recovery Bridle or Equaliser Strap is an essential tool for heavy vehicle recovery. Designed with minimal stretch to maintain precise control, it attaches securely to both sides of the towed or winched vehicle, allowing your recovery or snatch strap to move freely from side to side. This ensures a smoother, more stable, and balanced pull by granting both the towing and towed vehicles independence of movement.
By distributing the load across dual anchor points, this heavy-duty bridle minimizes potential structural damage to your vehicle and significantly increases overall recovery safety.
Understanding Your Load Ratings & Rigging Configuration
Engineered for peak versatility and safety, this product functions as a high-capacity multi-leg sling.
-
Basket / U-Shape Configuration (2 Anchor Points): Rigging the bridle in a U-shape distributes the weight across two legs, effectively doubling the capacity to achieve its full 100,000 kg breaking strength.
-
Straight-Pull Configuration: When utilized as a single-line straight-pull tow strop, the entire load concentrates onto a single path, resulting in a rated breaking strength of 50,000 kg.
Recommended Hardware & Shackle Requirements
To maintain safety and performance integrity during heavy recoveries, proper connection hardware is essential.
-
Suggested Shackle Size: 2 x WLL 17-Tonne (17,000 kg) shackles.
-
Compliance & Safety Factor: Shackles must comply with AS 2741 (Grade S), featuring a mandatory 6:1 safety factor (minimum breaking force equal to 6 times the Working Load Limit) to ensure compliance with Australian standards for high-capacity rigging.
Key Features & Benefits
-
Maximum Capacity: 100,000 kg (100-Tonne) breaking strength in a U-shape configuration.
-
100% Polyester Construction: Manufactured from high-tenacity, low-stretch polyester webbing for superior load stability and minimal elastic recoil compared to traditional nylon.
-
Expertly Assembled in Australia: Proudly built in our local factory, featuring premium, Australian-made protective tubing sleeves designed to withstand the harshest off-road and industrial environments.
-
Balanced Load Distribution: Spreads pulling force across multiple anchor points to protect vehicle chassis and attachment points.
-
Independent Vehicle Movement: Allows recovery lines to glide smoothly side-to-side for a more stable and controlled tow.
-
Enhanced Safety: Reduces the risk of structural stress and maintains predictable control during complex recoveries.
Our range of shackles can be found here: Metal Shackles and Soft Shackles.
The 100Tonne or 100000kgs Recovery Bridle other known as an Equaliser Straps is used with the following Snatch Strap: SSA Snatch Strap 100T
To further assist in easier connection of bridles to the vehicle, axle straps can be used to help.
A full bundle is available at a discounted price which includes the Snatch Strap, Bridle and 2 x Axle Straps: SSA Snatch Strap Combo 100Tonne
IF THE RECOVERY BRIDLE IS CUT OR DAMAGED DO NOT USE, TAKE IT TO YOUR LOCAL STOCKLIST FOR ASSESSMENT REPAIR.
